Product Overview

AutoTest MPD-12 delivers electrical performance test solutions for high-frequency/high-speed connectors. Equipped with a built-in automated test software module, it enables one-click high-frequency performance testing of connectors to streamline and accelerate test procedure

Application Scenarios

1. Mass quality assurance testing on production linesRapid verification of high-frequency parameters for sampling inspection of connector electrical performance before delivery.

2. Comprehensive electrical performance testing and evaluation in laboratoriesAssists engineers in troubleshooting issues during connector R&D.

Functional Features

1. Fully automatic testing for 2-wafer and 3-pair connectors with ultra-fast test speed.The test duration for 6 through paths of connectors is only 45 seconds, while full crosstalk measurement across all 6 channels takes merely 140 seconds.

2. Flexible crosstalk testing with customizable PINMAP configuration.

3. MPD-12 features superior test accuracy, supporting calibration of 6 through channels and crosstalk de-embedding.

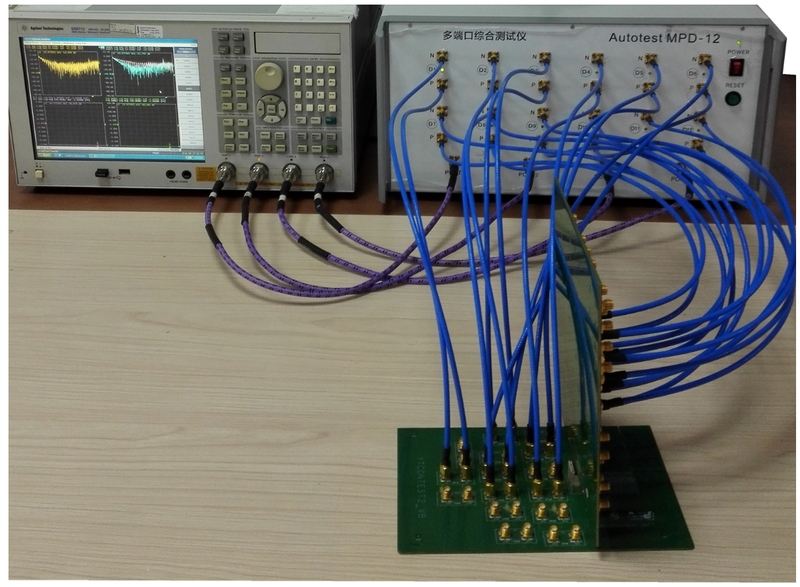

4. Simplified test system setup: Only one vector network analyzer (VNA) plus the MPD-12 tester are required to measure and evaluate all frequency-domain and time-domain parameters of connectors.

5. Expandable ports available upon customer request.
